Place of Origin: | Guangdong, China |
Nombre de la marca: | RYGH Tech |
Certificación: | rohs |
Model Number: | RYGH-SM-1 |
Minimum Order Quantity: | 1 |
---|---|
Precio: | $12.92 |
Application: | ROAD | Color Temperature(CCT): | 5000K (Daylight) |
---|---|---|---|
IP Rating: | IP65 | Lamp Body Material: | Aluminum |
Input Voltage(V): | 6V | Warranty(Year): | 2-Year |
Working Temperature(℃): | -40 - 65 | Color Rendering Index(Ra): | 70 |
Light Source: | LED | Lighting solutions service: | Project Installation, Lighting and circuitry design |
Lifespan: | 50000 | Product Weight(kg): | 27 |
Installation: | U-shaped frame mounted | Control Method: | Remote Control |
Shade material: | Aluminum | Fixture Type: | Adjustable |
Solar panel: | 6V/18W | LED chips: | 5730 high lumen led chips |
Discharge time: | 12-16 hrs | Function: | Intelligent Light Control+Remote Control |

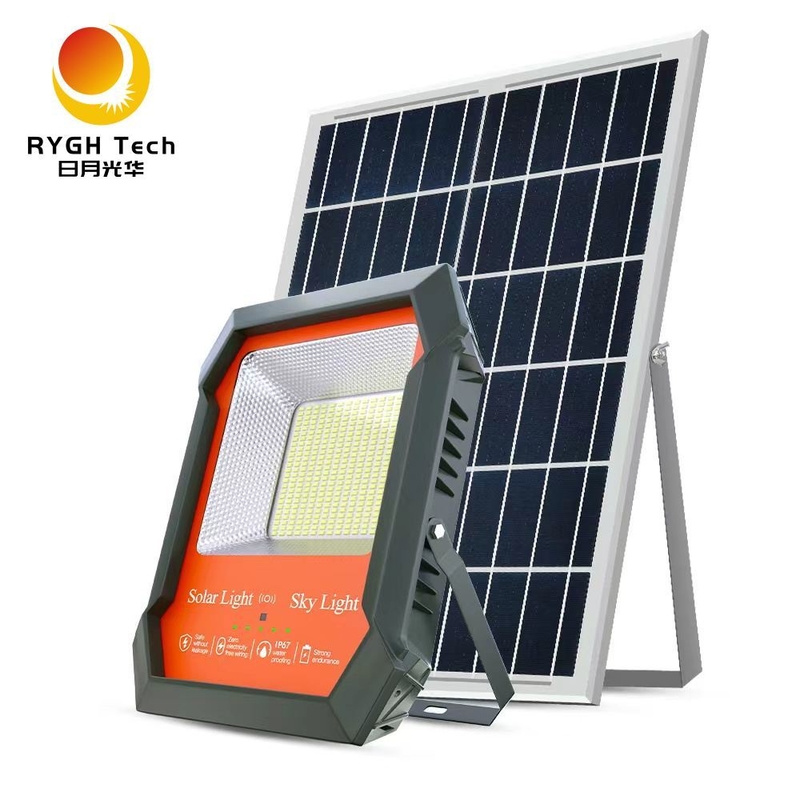

RYGH Tech Spirit Mirror Series Solar flood light | |||||

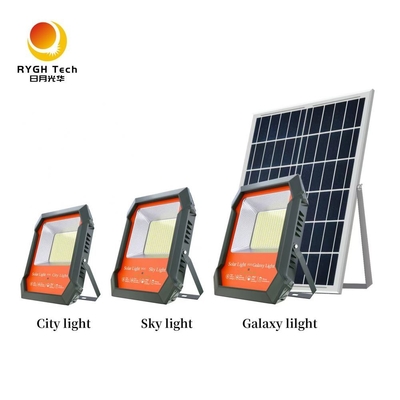

Model No. | RYGH-SM-1 | RYGH-SM-2 | RYGH-SM-3 | RYGH-SM-4 | |
Battery | LiFePO4 12AH | LiFePO4 18AH | LiFePO4 20AH | LiFePO4 40AH | |
Solar panel | 6V/18W(350*350mm) | 6V/25W(350*450mm) | 6V/30W(350*530mm) | 6V/40W(350*700mm) | |
LED chips | 99 pcs 5730 high lumen led chips | 247 pcs 5730 high lumen led chips | 341 pcs 5730 high lumen led chips | 532 pcs 5730 high lumen led chips | |
Lamp body size | 215*285*70mm | 260*330*80mm | 288*365*80mm | 460*365*110mm | |
Discharge time | 12-16 hrs | ||||
Irradiation Area | 100 square meters | 150 square meters | 240 square meters | 300 square meters | |
Function | Intelligent light control+remote control | ||||
Product Configuration | Waterproof line/U-shaped frame/remote control/screws | ||||
QTY/Carton | 10 | 10 | 10 | 5 | |
Carton Size(cm) | Lamp body | 45.5*35.5*33 | 53*41.5*37.5 | 59*41.5*40 | 56.5*49.5*39 |
Solar panel | 37*32*38 | 48.5*29.5*38.5 | 56*29.5*38.5 | 73.5*16.5*37.5 | |
G.W. | Lamp body | 13KG | 20KG | 22KG | 25KG |
Solar panel | 14KG | 23KG | 25KG | 24KG |
